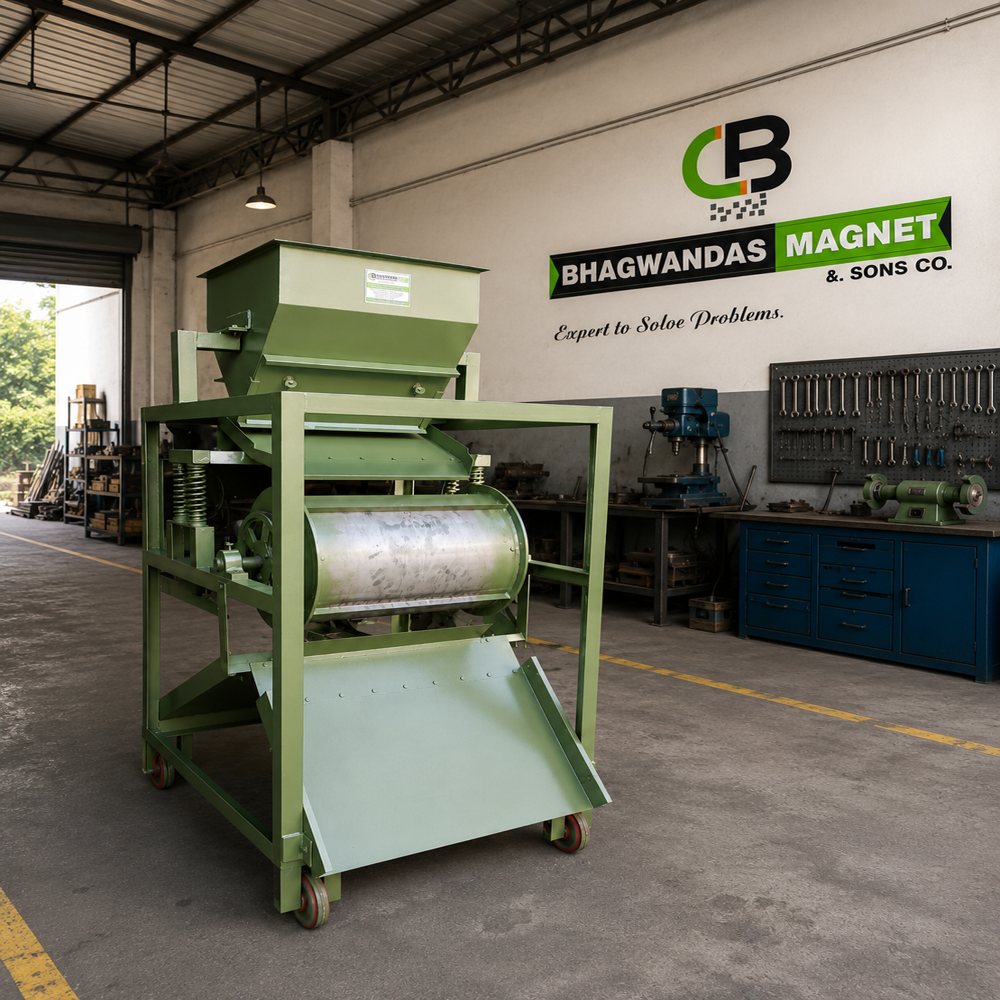

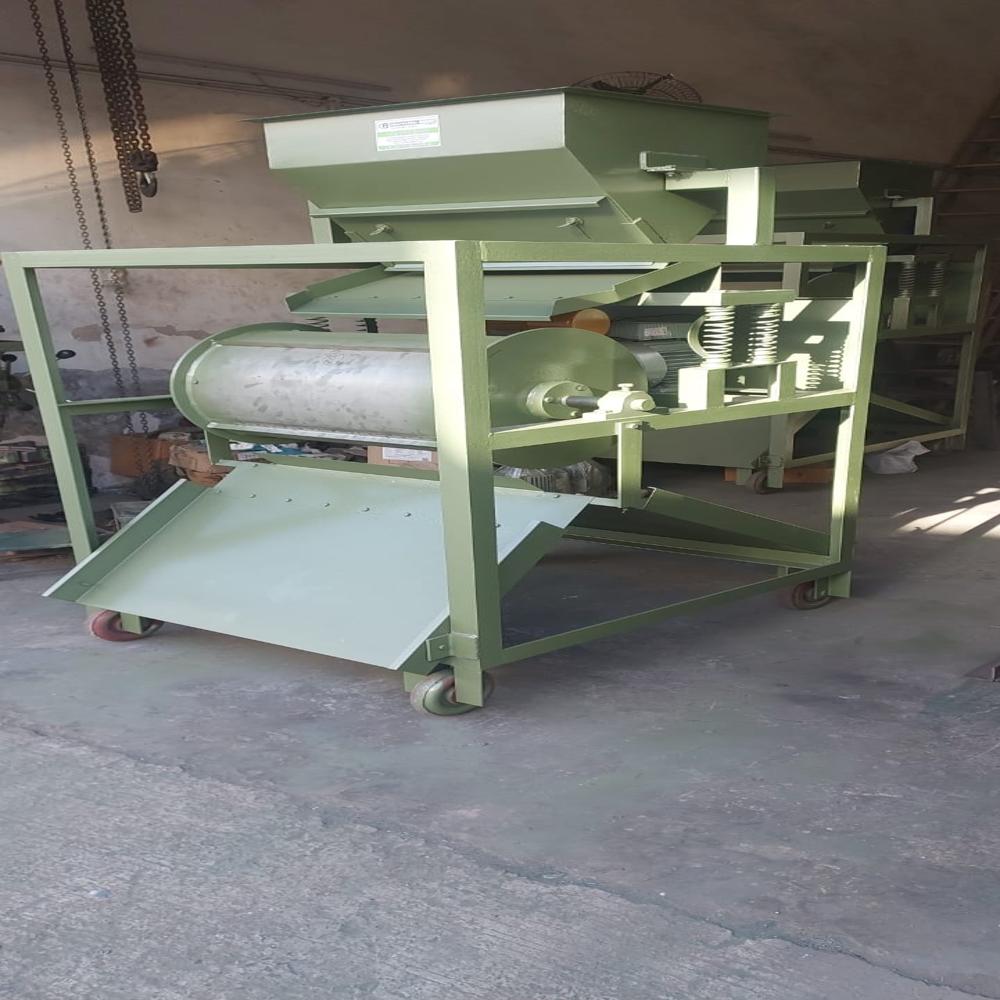

magnetic drum separator

Name: magnetic drum separator
Brand: BHAGWANDAS MAGNET AND SONS CO
Price: 55000.0 INR
Availability: InStock

Price 55000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

magnetic drum separator Specification

Magnet Grade
N52 / Ferrite

Voltage
220-240V / 380-415V (customizable)

Power Supply
Electric

Power
2 to 5 HP (motorized variant, as per size)

Material
Mild Steel Frame, SS Drum, Magnets

Composite
Mild Steel Structure with Stainless Steel Drum

Frequency
50/60 Hz

Surface Finish
Powder Coated/MS Painted

Application
Removal of ferrous contaminants from dry bulk materials, industrial mineral processing, recycling, foundries, food and chemical industries

Product Type
Magnetic Drum Separator

Magnet Category
Rare Earth/High Intensity Ferrite

Magnet Type
Permanent Magnet

Shape
Cylindrical (Drum)

Size Range
Drum diameter 300 to 600 mm, Drum length 400 to 1500 mm

Weight
Approx. 600-1200 kg (varies with model)

Color
Industrial Green (customized coating available)

Usage & Applications
For automatic and continuous separation of ferrous particles, removal of tramp iron from bulk goods, protection of processing machinery

Capacity
200 kg/hr to 4 TPH (depends on model and material)

Bearing Type
Heavy Duty, Industrial Grade

Customization
Available for Size, Capacity & Configuration

Inlet/Outlet Design
Tapered Chutes for Material Flow Optimization

Temperature Range
Up to 80C Operating Environment

Feed Hopper
Integrated Stainless Steel Hopper

Installation
Standalone, Mobile on Castor Wheels

Safety Features
Protective Guard, Emergency Stop Provision

Cleaning Mechanism
Automatic Separation; Magnetically Cleaned Drum

Noise Level
<70 dB (under normal operation)

Operation Mode
Automatic, Continuous

Drum Surface
Stainless Steel NON Magnetic Shell (as per industry standard)

Drive System
Direct Coupled/Chain Driven Motor

Mobility
Heavy-duty Castor Wheels for Easy Move

Control Panel
Optional Electrical Control Panel

magnetic drum separator About

Experience prime magnetic separation with our Gilt-edged Magnetic Drum Separator, engineered for prodigious results in industrial mineral processing, recycling, foundries, and food industries. Redeem exceptional value at an unbeatable price with our featured model equipped with a direct coupled/chain driven motor and automatic, continuous operation mode. Integrated stainless steel hopper, magnetically cleaned drum, and heavy-duty bearings ensure flawless performance. With full customization for size, configuration, and control panels, this separator offers ultimate adaptability. Mobile castor wheels, advanced safety features, and industrial-grade build position it as your top-tier solution for ferrous contaminants removal.

Superior Features & Industrial Advantages

This featured magnetic drum separator offers prodigious benefits, including automatic cleaning, a stainless steel non-magnetic shell, and heavy-duty bearings. Its direct drive system ensures reliable operation and low noise (<70 dB), while the integrated feed hopper and tapered chutes optimize material flow. Plant applications extend to mineral processing, recycling, foundries, and chemical industries, providing unbeatable performance for removing ferrous contaminants and safeguarding machinery in various production environments.

Swift Delivery, Certifications, and Export Market

Order completion is streamlined, with stock ready for most standard models and list price options available upon inquiry. Delivery time varies based on customization, but expedited shipping is prioritized. Our magnetic drum separators are supplied with relevant certifications, ensuring compliance with global standards. Main export markets include North America, Europe, Asia, and the Middle East. Enjoy peace of mind knowing your equipment meets industry demands, is certified, and ready for efficient integration into your plant.

FAQ's of magnetic drum separator:

Q: How does the automatic cleaning mechanism function in the magnetic drum separator?

A: The automatic cleaning mechanism magnetically separates ferrous contaminants from dry bulk materials as they pass through the drum, then transports the separated metal away from the product flow for uninterrupted, continuous operation.

Q: What applications are best suited for this magnetic drum separator?

A: Our magnetic drum separator is ideal for the removal of ferrous contaminants in industries such as mineral processing, foundries, recycling plants, food processing, and the chemical sector, safeguarding equipment and ensuring product quality.

Q: Where can the magnetic drum separator be installed within a plant setup?

A: The separator can be installed as a standalone unit or integrated into existing processing lines thanks to its customizable design. Its mobility on heavy-duty castor wheels also allows for flexible placement according to operational needs.

Q: What customization options are available for this model?

A: Customization includes selecting different drum diameters and lengths, magnetic strengths (N52 or Ferrite), motor power, voltage/frequency, inlet/outlet configurations, color coating, and optional electrical control panels.

Q: How does the drum separator contribute to plant safety and process optimization?

A: It is equipped with protective guards, an emergency stop provision, and an optional control panel, ensuring safe usage. The optimized chute and feed hopper design enhance material flow while the automatic operation reduces manual handling risks.
