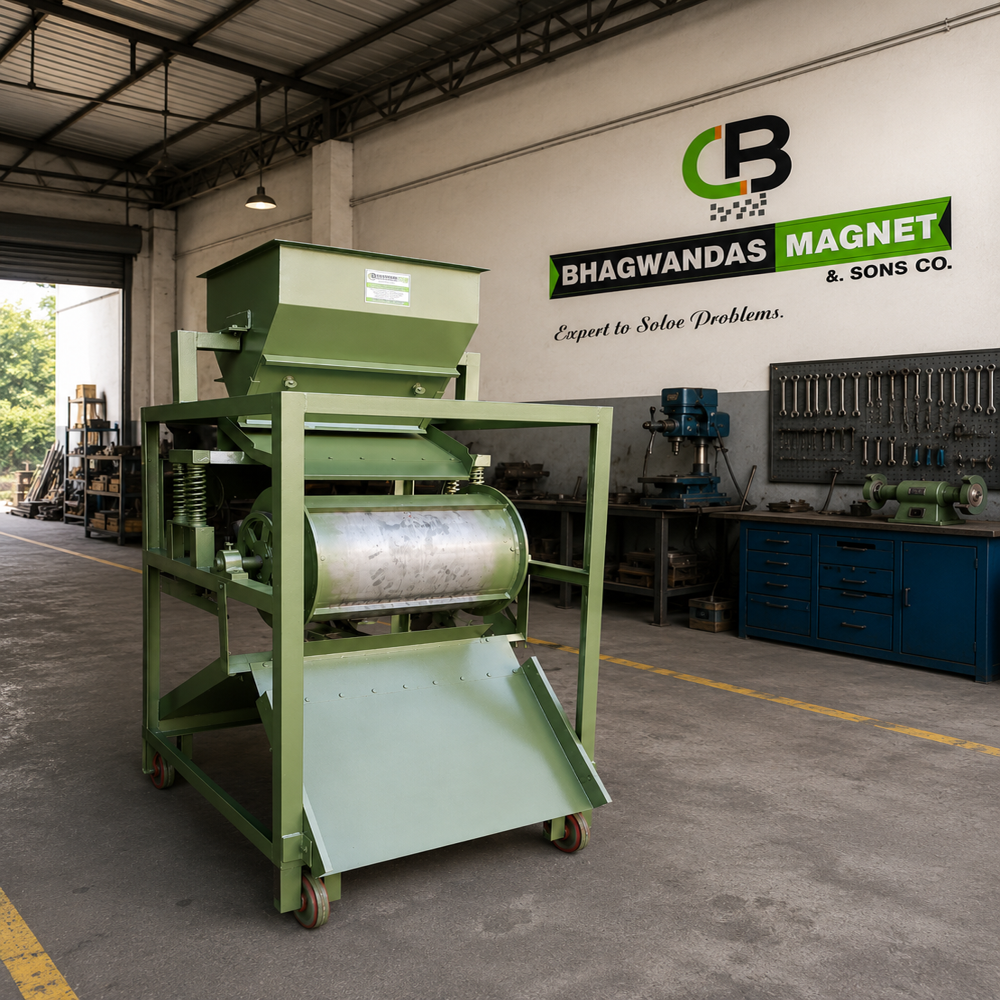

Magnetic Drum Separator

Name: Magnetic Drum Separator
Brand: BHAGWANDAS MAGNET AND SONS CO
Price: 60000.0 INR
Availability: InStock

Price 60000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Magnetic Drum Separator Specification

Power Supply
Electric

Magnet Grade
N35-N52/NdFeB Ferrite

Surface Finish
Painted/Polished

Composite
Stainless Steel/ Mild Steel Casing with Permanent Magnets

Application
Automatic separation of ferrous contaminants from dry granular material or powders

Frequency
50/60 Hz

Voltage
220V/415V

Material
Stainless Steel or MS housing, Magnetic Drum with high Gauss magnets

Power
1.5 kW - 5.5 kW (varies with model)

Product Type
Magnetic Separator

Magnet Category
Permanent Magnets

Magnet Type
Ferrite and High-Intensity Rare Earth (NdFeB)

Shape
Cylindrical Drum

Size Range
Drum Diameter: 300 mm - 600 mm, Drum Length: 300 mm - 2000 mm

Weight
250 kg - 1200 kg (model dependent)

Color
Blue (Standard)/Customizable

Usage & Applications
Recycling, Mineral Processing, Food Processing, Chemical, Pharmaceuticals, Ceramics, and other bulk material handling industries

Capacity
Up to 10 TPH (depends on material and drum size)

Belt Drive Type
Direct coupled or chain driven

Operating Temperature
Up to 80C (higher available on request)

Drum Shell Thickness
3 mm - 6 mm

Drum Speed
15-40 RPM (adjustable as per application)

Cleaning Type
Continuous automatic discharge

Installation Type
Floor mounted or attached to process line

Feeding Material Size
0.5 mm to 100 mm max

Magnetic Intensity
1500-3500 Gauss (standard); high-intensity models available

About Magnetic Drum Separator

Buy the Classic Magnetic Drum Separator and enjoy instant savings on this crowning solution for ferrous material separation. This new-generation separator delivers sterling performance, with standard magnetic intensity between 1500 and 3500 Gauss and high-intensity options available. Capable of handling feeding material sizes from 0.5 mm to 100 mm, it features drum speeds adjustable from 15-40 RPM and continuous automatic cleaning. The robust stainless steel or mild steel casing, equipped with permanent magnets, ensures long-lasting reliability. Choose from various power options (1.5 kW-5.5 kW), voltages, and model weights for seamless integration into your process line. Ideal for recycling, food, mineral processing, and more.

Rugged Performance for Multiple Industries

The Magnetic Drum Separator is engineered for commercial excellence across recycling, mineral processing, food, chemical, pharmaceutical, ceramics, and bulk material handling applications. Its primary competitive advantages include high magnetic intensity, continuous automatic discharge, and adjustable drum speed. Installation is versatile-floor-mounted or attached to your process line. Simply feed dry granular or powder material into the separator; ferrous contaminants are automatically separated, ensuring superior processing quality and operational efficiency in demanding environments.

Reliable Supply, Prompt Delivery and Secure Packaging

We offer consistent supply ability to meet bulk and ongoing orders for Magnetic Drum Separators, with swift delivery timelines. Each separator is securely packaged to ensure damage-free transit, ready to be delivered worldwide. Choose from flexible payment terms to suit your procurement requirements. Our main export markets span Asia, Europe, Africa, and the Americas, guaranteeing seamless, professional supply to diverse industries globally.

FAQ's of Magnetic Drum Separator:

Q: How does the Magnetic Drum Separator effectively remove ferrous contaminants?

A: The separator utilizes high-intensity magnets within a rotating drum to attract and separate ferrous particles from dry granular materials or powders, discharging them automatically for continuous operation.

Q: What materials and industries can benefit from using this separator?

A: This Magnetic Drum Separator is suited for industries like recycling, mineral processing, food processing, chemicals, pharmaceuticals, ceramics, and bulk material handling, especially for removing ferrous contaminants from fine or coarse materials.

Q: When is it advisable to opt for a high-intensity model?

A: High-intensity models are recommended when separating finer ferrous particles or when higher magnetic separation efficiency is required, such as in sensitive applications in pharmaceuticals or high-purity processes.

Q: Where is the Magnetic Drum Separator installed within a production facility?

A: It can be installed as a floor-mounted system or attached directly to the process line, depending on the specific workflow and space availability within your facility.

Q: What is the cleaning process for this separator?

A: The unit features a continuous automatic discharge system, which ensures ferrous contaminants are removed from the drum surface without interrupting operation, minimizing maintenance and manual cleaning needs.

Q: How does the application method enhance operational efficiency?

A: By enabling automatic, consistent removal of ferrous contaminants, the application ensures product purity, reduces downtime caused by manual cleaning, and optimizes production throughput.
