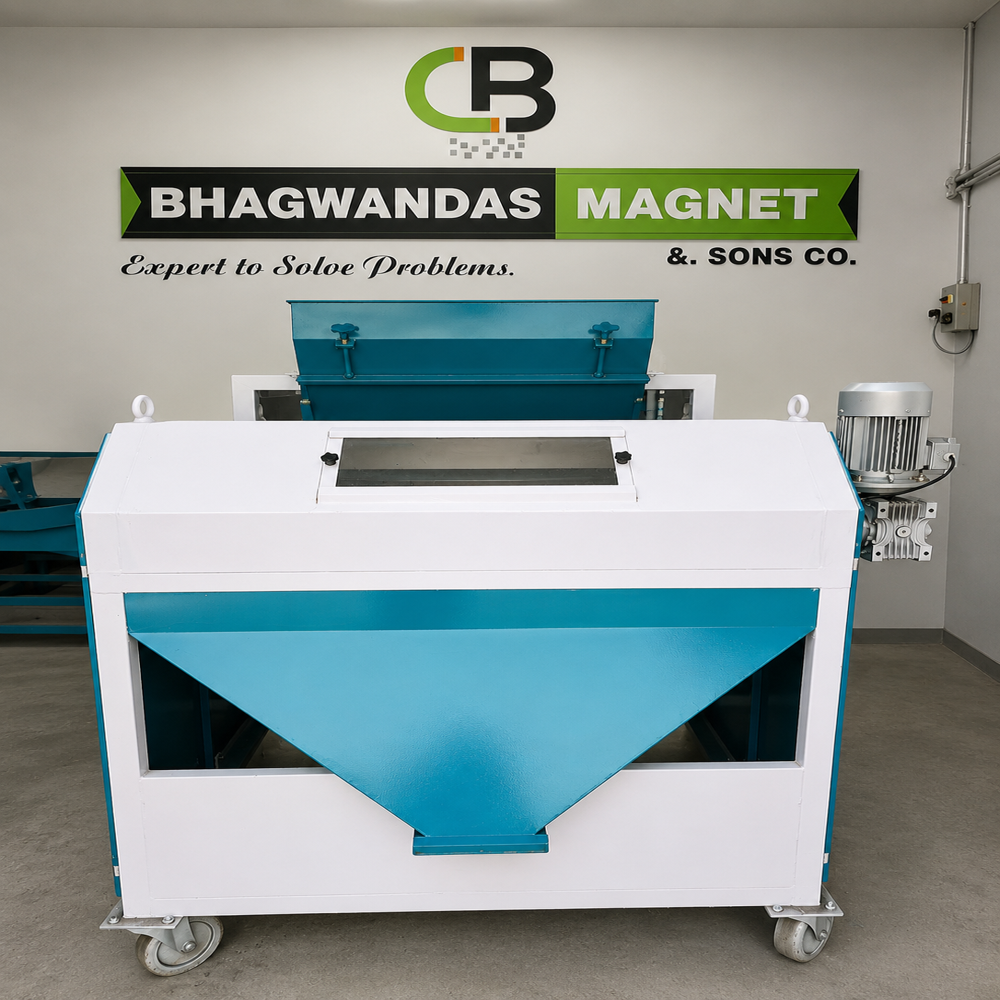

Magnetic Roll Separator

Name: Magnetic Roll Separator
Brand: BHAGWANDAS MAGNET AND SONS CO
Price: 140000.0 INR
Availability: InStock

Price 140000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Magnetic Roll Separator Specification

Surface Finish
Powder Coated & Painted

Frequency
50 Hz / 60 Hz

Voltage
220V / 380V / 415V (customizable)

Application
Separation of ferromagnetic and paramagnetic materials, industrial mineral processing, recycling, food, chemical, and pharmaceutical industries

Composite
Mild Steel, Stainless Steel, Magnetic Roll, High-Performance Components

Power Supply
Electric

Power
1 HP to 5 HP, as per model

Material
MS/SS304/SS316

Magnet Grade
N52 / N48

Product Type
Magnetic Roll Separator

Magnet Category
Permanent Magnet

Magnet Type
High-Intensity Rare Earth Neodymium Magnets

Shape
Rectangular Body with Cylindrical Magnetic Roll

Size Range
Width: 300mm to 1500mm (custom sizes available)

Weight
300 kg to 1200 kg (varies by model)

Color
White & Blue Finish (custom colors available)

Usage & Applications
Used for removing iron contamination from minerals, chemicals, food products, silica, quartz, feldspar, and more

Capacity
1 Ton/hr to 10 Ton/hr (based on material & model)

Noise Level
Low noise operation

Discharge Type
Multiple outlets for magnetic and non-magnetic fractions

Protection
Overload protection for motor and electricals

Control Panel
Integrated digital control panel with safety interlocks

Mobility
Fitted with heavy-duty wheels for easy movement

Installation
Easy installation, plug & play design

Cleaning Method
Self-cleaning mechanism

Feed Hopper Type
Stainless steel with adjustable gate

Operating Temperature
Up to 80C continuous

Customization
Custom sizes and configurations available upon request

Roll Diameter
100mm to 250mm

Roll Speed
Adjustable, up to 2000 RPM

About Magnetic Roll Separator

Explore the celebrated performance of our Magnetic Roll Separator, crafted for instant savings and excellent separation efficiency. Designed with an uncommon blend of mild steel and stainless steel, it features a high-intensity rare earth neodymium magnetic roll (diameter 100mm-250mm) with adjustable speeds up to 2000 RPM. The select self-cleaning mechanism and stainless-steel feed hopper maximize productivity. Multiple discharge outlets, digital controls, and heavy-duty mobility wheels ensure effortless operation. Customization, overload protection, low noise, and plug & play installation make this a premier choice for industries seeking reliable, high-performance magnetic separation.

Magnetic Roll Separator: Applications & Standout Features

This Magnetic Roll Separator is used for removing iron contamination from minerals, chemicals, food products, silica, quartz, and more. Its special features include an adjustable roll speed (up to 2000 RPM), self-cleaning mechanism, integrated digital control panel, and multiple magnetic and non-magnetic discharge outlets. Designed for excellent efficiency, the separator comes with heavy-duty wheels, overload protection, and a robust powder-coated finish. Available in custom sizes, it supports a variety of industrial applications, such as mineral processing and recycling.

Export Markets, Packaging & Payment Terms for Magnetic Roll Separator

Our Magnetic Roll Separator is supplied to main export markets spanning Asia, Africa, the Middle East, and Europe. Each unit is packaged with secure, protective materials to maintain celebrated quality during shipment. Detailed quotations are provided post-specification review, ensuring transparent outlay. We support flexible payment terms like TT, LC, and wire transfer to suit global client needs. Rely on us for timely supply and excellent after-sales support across international markets.

FAQ's of Magnetic Roll Separator:

Q: How does the self-cleaning mechanism of the Magnetic Roll Separator work?

A: The self-cleaning mechanism automatically removes accumulated ferromagnetic and paramagnetic particles from the magnetic roll, ensuring uninterrupted operation and reducing manual intervention.

Q: What is the benefit of adjustable roll speed on this separator?

A: The adjustable roll speed, up to 2000 RPM, allows operators to optimize separation efficiency for diverse materials and applications, from industrial minerals to food and pharmaceuticals.

Q: Where can the Magnetic Roll Separator be installed?

A: Thanks to its heavy-duty wheels and plug & play design, the separator can be installed in various facilities, including mineral processing plants, recycling centers, and food or chemical production sites.

Q: When is customization of size and color available?

A: Customization for size and color is available upon request at the time of order placement, ensuring the separator meets your specific operational and aesthetic requirements.
